The Staidtreat®BXW is a low-frequency absorbent panel. It is tuned to 125 Hz and is meant to be placed on walls or normal or T-type ceilings.

It works when tuned to 125 Hz, in the first harmonic of the Staidtreat®BXA, thus exponentially boosting the absorption of basses when both panels are used together.

This tuned panel uses an open resonance chamber, which is combined with a membrane that was developed and calibrated to enhance its performance.

The visible outer plate is made of a porous and permeable mineral granulate which is highly absorbent in the medium and high frequencies, thus further widening the absorption range of this panel.


Features:

  • Tuned to 125Hz
  • Average absorption: 0.83 [>50Hz;<250KHz]
  • Made of recyclable materials
  • Plate of pressed mineral granulate
  • Fire-resistance: M1
  • Application on ceilings and walls
  • Package: 4 units
  • Installation: accessories included
  • Available in 5 colours
  • T-ceilings ready applications.

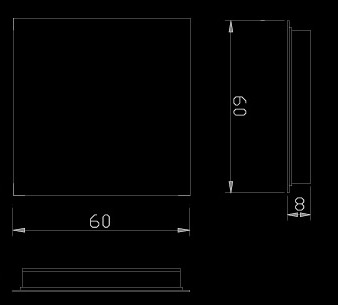

Weight
Height
Width
Depth
4.2 Kg
60 cm
60 cm
8 cm

NRC = 0.83 - Staidtreat® BXW®


αs

0.60
0.93
1.01
0.83
0.75
0.93
0.80
0.67
0.50
0.44
0.40
0.33
0.42
0.46
0.47
0.53
0.51
0.47
0.40
0.38
0.36
0.34
0.31
0.29

A
B
S
O
R
P
T
I
O
N

C
O
E
F
F
I
C
I
E
N
T

1.4
1.2
1.0
0.8
0.6
0.4
0.2



HZ

50
63
80
100
125
160
200
250
315
400
500
630
800
1 K
1.25K
1.6 K
2 K
2.5 K
3.15 K
4 K
5 K
6.3 K
8 K
10 K



FREQUENCY (HZ)


Values in accordance with the Standards: EN20654, ASTM C423 e EN 11654

Values [<100Hz and > 5K] are Non Standard Values

JOCAVI® products are certified by the F.E.U.P. acoustic laboratory.
