ECOiso® - NCF® Noise Control Floor
REDUCES SOUND AND VIBRATION LIKE NEVER BEFORE


ECOiso® NCF® is a sound insulation material composed by one sheet of Cork Agglomerate and one board of highdensity recycled wood fibers. This material was thought in order to reduce transmission of sound and vibration in the floors of residential and commercial buildings. It can also be used on walls and ceilings.
The strength and durability added to the available dimensions of the ECOiso® NCF® make it ideally suitable for primary construction or retrofitting of existing applications. There is a requirement for a sound isolation material that should be as thin as possible, in order to maximize the usable room areas.
Beforetime the use of cork and wood agglomerates was one of earliest methods for building studios soundproofing insulation. It was soon discovered that these same excellent characteristics so essential in recording studios, could be applied equally well to home theatres, home studios, music rooms and many others.
ECOiso® NCF® has also proven effective over a wide sound frequencies range, giving the best noise reduction values at the low and high-frequencies in a single composite material.

Features
Models and Sizes
100% recyclable
Natural raw-materials
Recycled raw-materials
Supplied in tiles, easy to install
Excellent anti-vibrate performance
Easily cut to adjust room dimensions
Provided in two sizes: 48 x 48 cm or 96 x 48 cm
Suitable for primary construction or retrofitting

MODELS HEIGHT WIDTH DEPTH WEIGHT
ECONCF968 96 cm 48 cm 8 cm 8.2 Kg
ECONCF966 96 cm 48 cm 6 cm 7.4 Kg
ECONCF488 48 cm 48 cm 8 cm 4.1 Kg
ECONCF486 48 cm 48 cm 6 cm 3.7 Kg

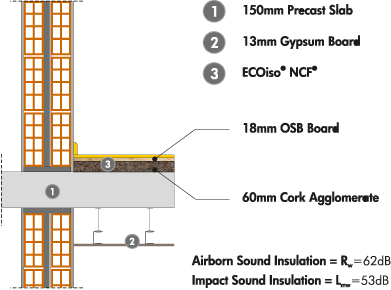

APPLICATION SUGGESTIONS
ECOiso®NCF® is ideal for sound isolation and vibration transmission. For example, it's well suited to floors walls and ceilings in studios or home-theatres. In these applications because of the density and high compression strength, ECOiso® NCF® is recommended best applied to the floor of the upper level and also as opposed to the ceiling of the lower level, both methods are possible and effective.
In any surface (ceiling, wall or floor) after the first ECOiso®NCF® layer a second subsequent layer can be screwed at the first layer for further reduce sound transmission.

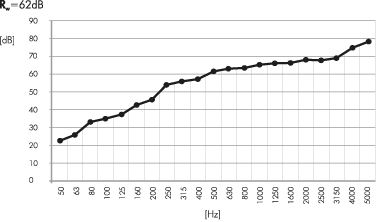

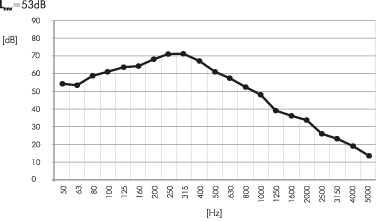

AIRBORN SOUND INSULATION (dB/Hz) IMPACT SOUND INSULATION (dB/Hz)

Frequency [HZ]
  ABSORPTION COEFFICIENT:
Values in accordance with the standards: EN 20654, ASTM C423 and EN 11654.

PACKAGE INFORMATION
REFERENCE PACKAGE DIMMENSIONS NR. OF TILES PER BOX
ECOiso® NCF486 - 60 cm 1 Box - 62x62x36cm 6 tiles (2,88 sqm)
ECOiso® NCF488 - 80 cm 1 Box - 62x62x36cm 4 tiles (1,92 sqm)
REFERENCE PACKAGE DIMMENSIONS NR. OF TILES PER BOX
ECOiso® NCF966 - 6 cm mm 1 Box - 120x62x36cm 6 tiles (5,76 sqm)
ECOiso® NCF968 - 8 cm 1 Box - 120x62x36cm 4 tiles (3,84 sqm)
